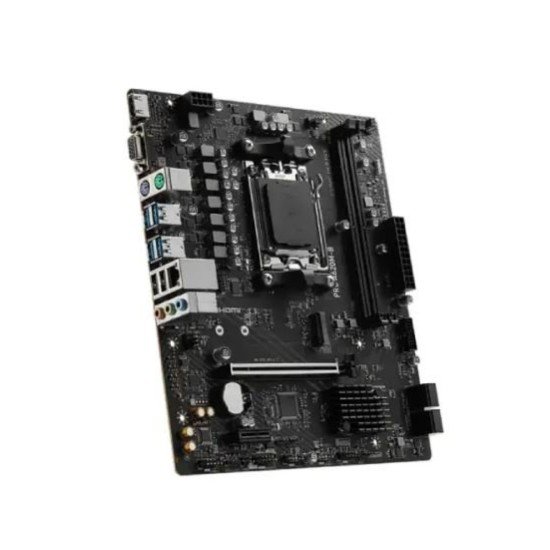

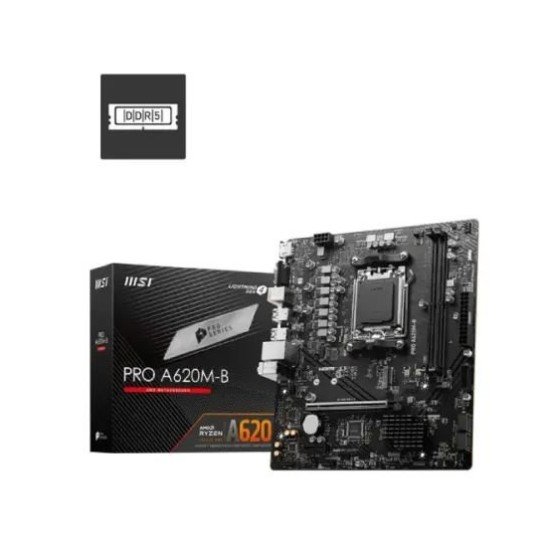

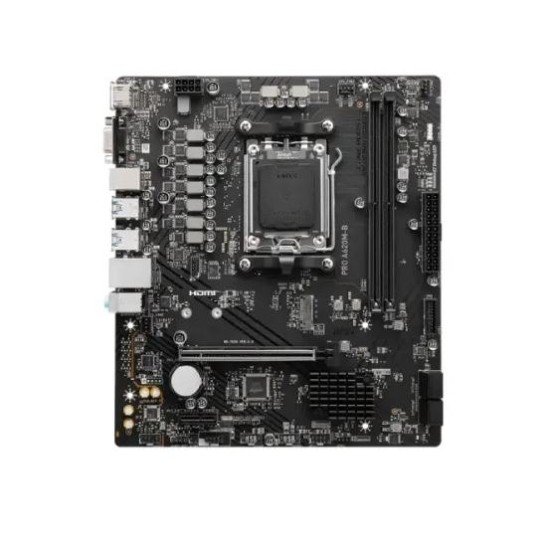

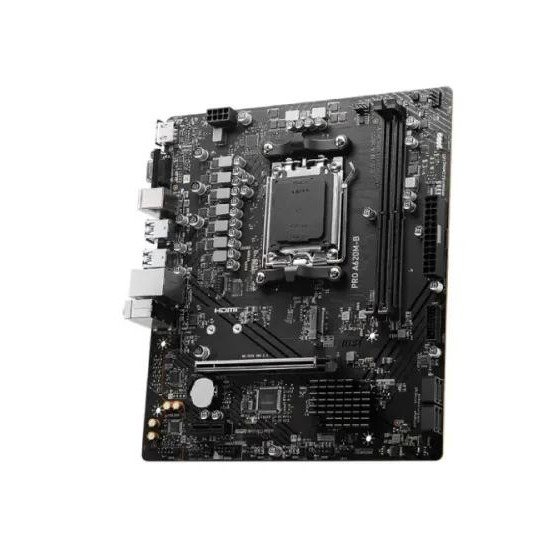

MSI PRO A620M-B AM5 mATX Motherboard
The MSI PRO A620M-B AM5 mATX Motherboard is a high-performance, compact solution intended for contemporary AMD systems, making it an excellent choice for customers looking to build using cutting-edge technology. Powered by the AMD A620 chipset, the MSI PRO A620M-B Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors via the sophisticated AM5 socket, providing long-term compatibility and cutting-edge performance. The MSI PRO A620M-B has two DDR5 memory slots and can handle up to 128GB of non-ECC, unbuffered dual-channel DDR5 RAM at overclocked speeds of up to 6800+ MHz (1DPC 1R) and 6000+ MHz (1DPC 2R), as well as complete support for AMD EXPO memory profiles. Onboard graphics capability includes an HDMI 2.1 connector with 4K at 60Hz output and a legacy VGA port, which are both accessible on CPUs with integrated graphics, increasing adaptability for various display configurations. The MSI PRO A620M-B AM5 mATX Motherboard has a PCIe 4.0 x16 slot that converts to x16, x8, or x4 depending on the CPU used, as well as an extra PCIe 3.0 x1 slot. Storage is likewise versatile, with one PCIe 4.0 x4 M.2 slot (supporting 2280 and 2260 NVMe SSDs) and four SATA 6Gbps ports that support RAID 0, 1, and 10, making the MSI PRO A620M-B Motherboard suitable for both speed and redundancy in storage setups. Networking is driven by the Realtek RTL8125BG 2.5G LAN, providing ultra-fast wired connections, while the integrated Realtek ALC897 audio codec delivers 7.1-channel high-definition sound for immersive multimedia experiences. Connectivity on the rear I/O includes USB 3.2 Gen 1 5Gbps Type-A ports, USB 2.0, HDMI, VGA, audio jacks, LAN, and PS/2 keyboard and mouse support, while internal headers provide power connections, fan headers, USB ports, audio, TPM 2.0 support, addressable RGB (JARGB_V2) and RGB (JRGB) headers for lighting, and EZ Debug LEDs for simplified troubleshooting. The MSI PRO A620M-B measures 215mm by 243.84mm and fits inside micro-ATX cases, making it ideal for small yet powerful desktop configurations. The MSI Motherboard is compatible with Windows 11 and Windows 10 64-bit, providing a future-ready platform for gamers, artists, and professionals. Whether you call it the MSI PRO A620M-B, MSI PRO A620M-B Motherboard, or simply the MSI Motherboard, this board is a solid basis for any high-performance AMD system.
