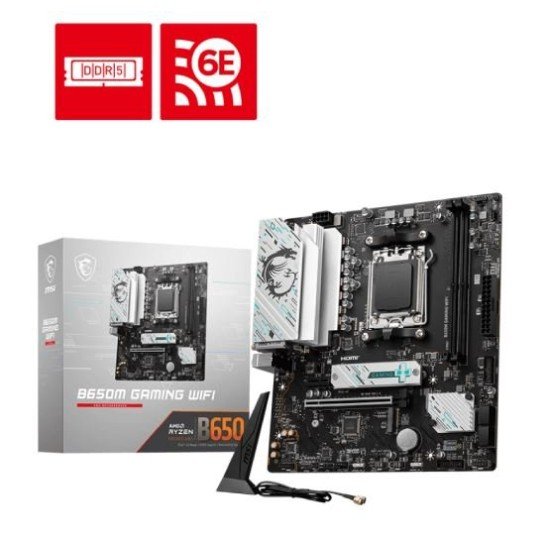

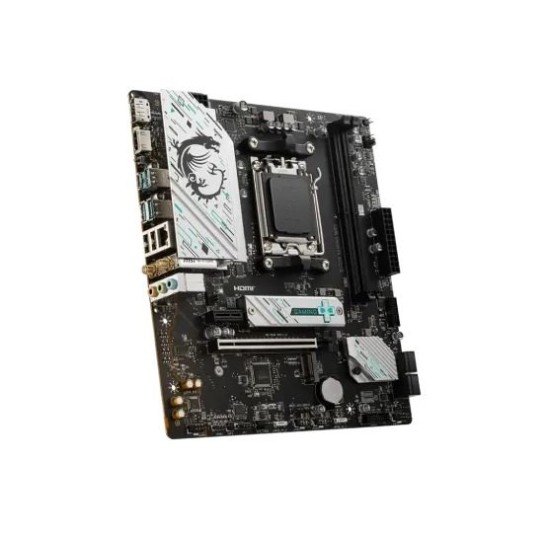

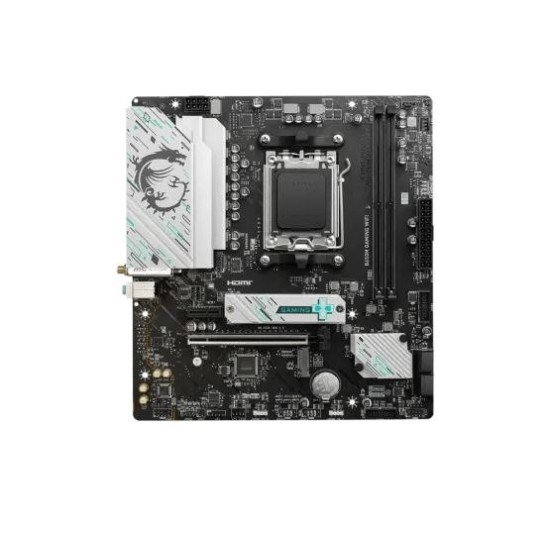

MSI B650M GAMING WIFI AM5 mATX Motherboard

MSI B650M GAMING WIFI AM5 mATX Motherboard
MSI B650M GAMING WIFI AM5 mATX Motherboard
MSI B650M GAMING WIFI AM5 mATX Motherboard
MSI B650M GAMING WIFI AM5 mATX Motherboard
Save: 2600৳
MSI B650M GAMING WIFI AM5 mATX Motherboard
MSI B650M GAMING WIFI AM5 mATX Motherboard
MSI B650M GAMING WIFI AM5 mATX Motherboard
MSI B650M GAMING WIFI AM5 mATX Motherboard
Share:
MSI B650M GAMING WIFI AM5 mATX Motherboard
  • Price:  17,700৳
  • Regular Price:  20,300৳
  • Product id:  121
  • Stock: In Stock
  • Brand: MSI
  • Model: B650M GAMING WIFI
Based on 0 reviews. - Write a review
Payment Option
WhatsApp Inquiry
Add to Cart
Buy Now Add to cart
Add to Wish List Add to compare

Key Features

  • Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 2x DDR5, up to 7800+(OC) MHz
  • Graphics Output: 1x HDMI, 1x Display Port
  • Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E
View more info

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Fusion Tech is not responsible for any results obtained from using this information.

Specification
Basic Information
Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B650
Form Factor mATX
226mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI 1x PCI-E x16 slot
Supports x16/x1
• Supports x16 (For Ryzen 7000 Series processors)
• Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
• Supports x4 (For Ryzen 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
M.2 Socket 2x M.2
Memory
Type DDR5
Slots 2
Supported Memory 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/
5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Maximum Memory 128GB
Graphics
Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
1x USB 5Gbps Type C (Rear)
4x USB 5Gbps Type A (Front)
LAN Port (s) Realtek RTL8125BG 2.5Gbps LAN
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
Wireless Communication module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3
Internal I/O Ports INTERNAL IO
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
BACK PANEL PORTS
DisplayPort
HDMI
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
USB 3.2 Gen 1 5Gbps (Type-C)
USB 3.2 Gen 1 5Gbps (Type-A)
USB 2.0
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Warranty Information
Manufacturing Warranty 3 Years
Description

MSI B650M GAMING WIFI AM5 mATX Motherboard

The MSI B650M GAMING WIFI AM5 mATX Motherboard is a powerhouse designed to elevate your gaming experience to new heights. Equipped with 1x HDMI and 1x Display Port, it ensures seamless connectivity to your display devices for stunning visuals and immersive gaming experiences. With Bluetooth 5.3 and AMD Wi-Fi 6E support, along with compatibility with AMD Ryzen 8000 and 7000 Series Desktop Processors, it offers unparalleled connectivity and processing power. DDR5 Memory support, capable of reaching speeds of up to 7800+(OC) MHz, ensures optimal performance, while Core Boost and Memory Boost technologies enhance stability and compatibility. Lightning Gen4 M.2 support and PCIe 4.0 slots deliver lightning-fast data transfer speeds, and Steel Armor reinforcement protects VGA cards from bending and electromagnetic interference. AUDIO BOOST technology provides studio-grade sound quality, and the high-quality 6-layer PCB made from 2oz thickened copper ensures superior durability and heat dissipation. The MSI B650M GAMING WIFI AM5 mATX Motherboard combines advanced features, robust construction, and unmatched performance to create the ultimate gaming platform for enthusiasts and gamers alike.
