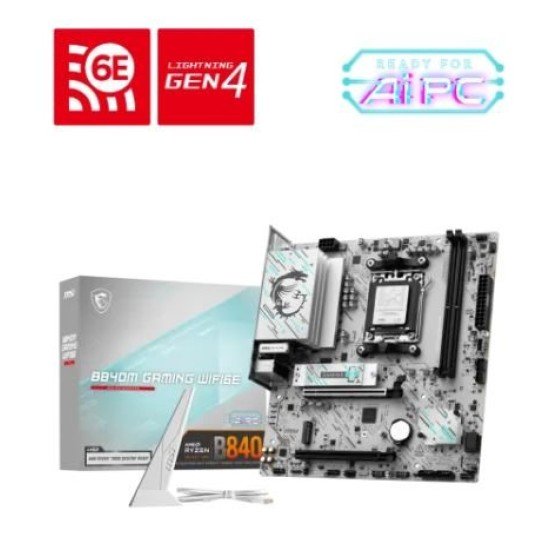

MSI B840M GAMING WIFI6E AM5 mATX Motherboard

MSI B840M GAMING WIFI6E AM5 mATX Motherboard
Save: 1800৳
Share:
MSI B840M GAMING WIFI6E AM5 mATX Motherboard
  • Price:  19,300৳
  • Regular Price:  21,100৳
  • Product id:  1348
  • Stock: In Stock
  • Brand: MSI
  • Model: B840M GAMING WIFI6E
Based on 0 reviews. - Write a review
Payment Option
WhatsApp Inquiry
Add to Cart
Buy Now Add to cart
Add to Wish List Add to compare

Key Features

  • Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 2x DDR5, up to 8000 (OC) MT/s
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
View more info

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Fusion Tech is not responsible for any results obtained from using this information.

Specification
Basic Information
Base Frequency Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B840
BIOS Flash BIOS Button
Form Factor mATX
226mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI 2x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E1 slot
Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
Memory
Type DDR5
Slots 2 x UDIMM
Supported Memory Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8000+ MT/s
1DPC 2R Max speed up to 7200+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory 128GB
Graphics
Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
LAN Port (s) Realtek 8125D 2.5G LAN
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
Wireless Communication module Wi-Fi 6E Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Audio 1x Front Audio (JAUD)
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Others
Special Features 4x EZ Debug LED
1x EZ Memory Detection LED
Manufacturer warranty
Warranty 3 Years Warranty
Description

Game Faster, Connect Smarter with Next-Gen AM5 Power

The MSI B840M GAMING WIFI6E AM5 mATX Motherboard is built for gamers and PC enthusiasts who want strong performance, modern connectivity, and future-ready features in a compact form. Whether you're building a budget gaming rig or upgrading to the latest AMD platform, this motherboard delivers speed, stability, and convenience for users in Bangladesh.

 Ready for Latest AMD Ryzen Processors

Supporting Ryzen 9000, 8000, and 7000 series CPUs, this motherboard gives you access to cutting-edge processing power. The AM5 platform ensures long-term upgrade support, so you can confidently invest in a system that stays relevant for years.

 High-Speed DDR5 Memory Performance

With 2 DDR5 RAM slots, the board supports speeds up to 8000 MT/s (OC). This means faster system responsiveness, smoother gaming, and improved multitasking. In real-world usage, applications open quicker, games load faster, and overall system performance feels more fluid.

 Advanced Connectivity – Wi-Fi 6E & 2.5G LAN

Stay ahead with Wi-Fi 6E, offering faster wireless speeds, lower latency, and better performance in crowded networks—perfect for online gaming and streaming in Bangladesh. The Realtek 2.5G LAN provides a stable wired connection for competitive gaming and professional work.

 Versatile Display & Expansion Options

The motherboard includes HDMI and DisplayPort outputs, allowing you to connect modern displays with ease. Whether you're using integrated graphics or planning to add a dedicated GPU later, you get flexible display support for both work and gaming.

 Real-World Usage & Build Experience

From installation to daily use, MSI gaming series boards are known for their reliability and user-friendly BIOS. Even if you're building a PC for the first time, setup is straightforward. Gamers will appreciate stable performance during long sessions, while everyday users benefit from smooth system operation.

 Pros &  Cons

 Pros:

  • Supports latest AMD Ryzen AM5 processors
  • Fast DDR5 RAM up to 8000 MT/s
  • Built-in Wi-Fi 6E and Bluetooth 5.3
  • 2.5G LAN for stable high-speed internet
  • Compact mATX design for smaller builds

 Cons:

  • Only 2 RAM slots (limited upgrade capacity)
  • No advanced RGB features
  • Limited expansion compared to ATX boards

 Why Buy This from Fusion Tech?

  • 100% authentic MSI motherboards
  • Best price deals in Bangladesh
  • Fast delivery with secure packaging
  • Expert guidance for PC building
  • Trusted warranty and after-sales support
