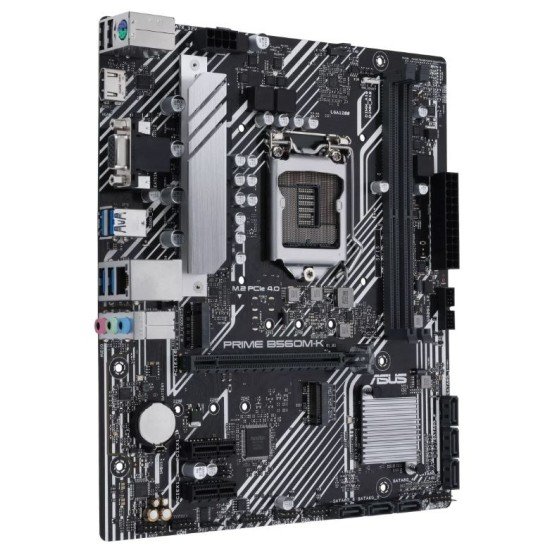

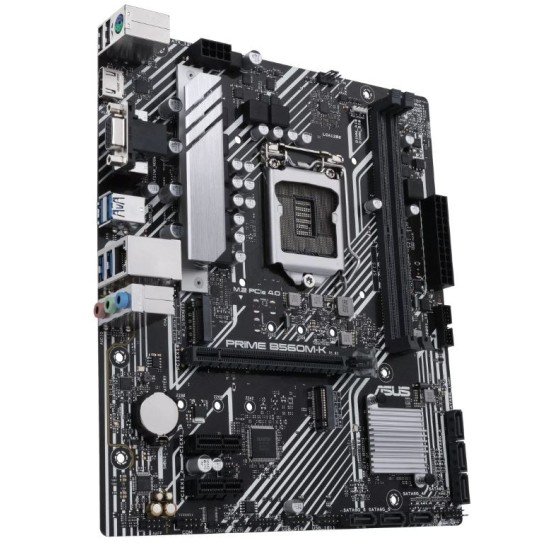

ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard

ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard
Save: 900৳
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard
Share:
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Used Motherboard
  • Price:  5,500৳
  • Regular Price:  6,400৳
  • Product id:  1415
  • Stock: In Stock
  • Brand: ASUS
  • Model: PRIME B560M-K
Payment Option
WhatsApp Inquiry

Key Features

  • Intel LGA 1200 socket: Supports 10th &11th Gen Intel Core processors
  • 8 power stages, alloy chokes & durable capacitors
  • PCIe 4.0, Intel 1 Gb Ethernet, USB3.2 Gen 1
  • VRM heatsink, PCH heatsink

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Fusion Tech is not responsible for any results obtained from using this information.

Specification
Basic Information
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel14 nm CPU

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B560 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX
9.6 inch x 8.3 inch(24.4cm x 21.1cm)
Audio Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC:
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
Expansion Slots
PCI Intel 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel11th Gen processors support PCIe 4.0 x16 mode
- Intel10th Gen processors support PCIe 3.0 x16 mode

Intel B560 Chipset
2 x PCIe 3.0 x1 slots
M.2 Socket M.2_1 slot (Key M), type 2242/ 2260/ 2280
M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type Memory Channels:2DDR4 (Dual Channel)
Slots Dual Channel Memory Architecture
Supported Memory 5000(OC)/ 4800(OC)/ 4600(OC)/4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/3600(OC)/ 3466(OC)/
3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC,
Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)

-10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively,
others will run at the maximum transfer rate of DDR4 2666MHz.

-11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.
Maximum Memory 64GB
Graphics
Graphics 1 x D-Sub
1 x HDMI 2.0
Connector & Ports
HDMI 1 x HDMI port
DVI-D (s) 1 x D-Sub port
USB (s) Rear USB:Total 6 ports:
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 6 ports:
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Supported Storage M.2_1 slot (Key M), type 2242/2260/2280

- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Power related
1 x 24-pin Main Power connector
1 x 8-pin+12V Power connector

Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header

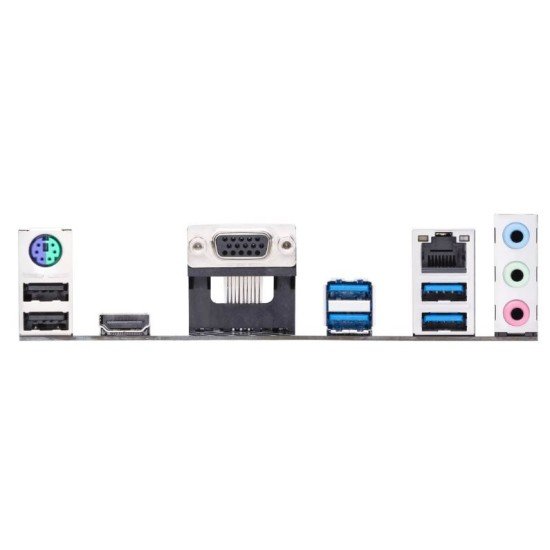

Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x D-Sub port
1 x HDMI port
1 x Intel I219-V 1Gb Ethernet
1 x PS/2 Keyboard/Mouse combo port
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O

ASUS Q-Design
- Q-DIMM
- Q-Slot

ASUS Thermal Solution
- VRM heatsink design

ASUS Lighting Control
-RGB header
Manufacturer warranty
Warranty 1 year
Description

ASUS PRIME B560M-K Used Motherboard – Reliable Performance for Modern Builds

Upgrade your PC with confidence using the ASUS PRIME B560M-K Used Motherboard, a powerful yet budget-friendly solution designed for 10th and 11th Gen Intel processors. Whether you're building a productivity workstation or a smooth everyday PC, this motherboard delivers stable performance, essential features, and long-term durability—making it an excellent value choice for Bangladeshi users.

 Built for Performance & Stability

Powered by the Intel B560 chipset and LGA 1200 socket, this motherboard supports both 10th and 11th Gen Intel Core processors. In real-world use, this means faster multitasking, smoother application handling, and improved system responsiveness—ideal for office work, browsing, and even light gaming.

The 8 power stages with alloy chokes and durable capacitors ensure consistent power delivery, reducing system crashes and enhancing longevity. Even under extended use, the board maintains stable performance, which is crucial in environments like offices or study setups.

 Efficient Cooling & Durable Design

Heat management is a key factor in system reliability. The ASUS PRIME B560M-K comes equipped with VRM and PCH heatsinks, helping keep temperatures under control during heavy workloads. This ensures your components last longer and perform optimally without overheating issues.

 Next-Gen Connectivity

Enjoy faster data transfers and modern connectivity with PCIe 4.0 support, allowing compatibility with high-speed SSDs and graphics cards. It also includes USB 3.2 Gen 1 ports and Intel 1Gb Ethernet, providing smooth internet performance—perfect for streaming, online classes, and remote work.

 Real-World User Experience

In practical use, this motherboard is ideal for users upgrading from older systems. It offers noticeable improvements in boot speed, multitasking, and system responsiveness. Whether you're editing documents, watching HD content, or running multiple browser tabs, the experience feels smooth and efficient.

 Pros:

  • Supports 10th & 11th Gen Intel processors
  • Stable power delivery with 8-phase design
  • PCIe 4.0 for faster future upgrades
  • Efficient cooling with VRM & PCH heatsinks
  • Reliable ASUS build quality

 Cons:

  • Used condition (may have minor cosmetic wear)
  • Limited advanced overclocking features
  • No built-in Wi-Fi

 Why Buy This from Fusion Tech?

When you purchase from Fusion Tech, you get more than just a product—you get reliability and trust. Each used motherboard is carefully tested for performance and stability. Fusion Tech offers competitive pricing, ensuring you get maximum value for your money, along with responsive customer support tailored for Bangladeshi customers.
